Scoreboard Operator's Instructions — MPCX2 Segment Timer Control#

These Instructions are for the Following Models#

MPCX2 Receivers#

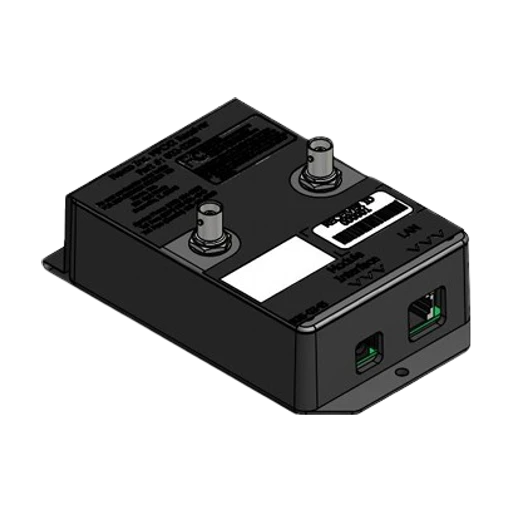

MPCX2 Receiver for use with outdoor x6xx and indoor x7xx scoreboards.

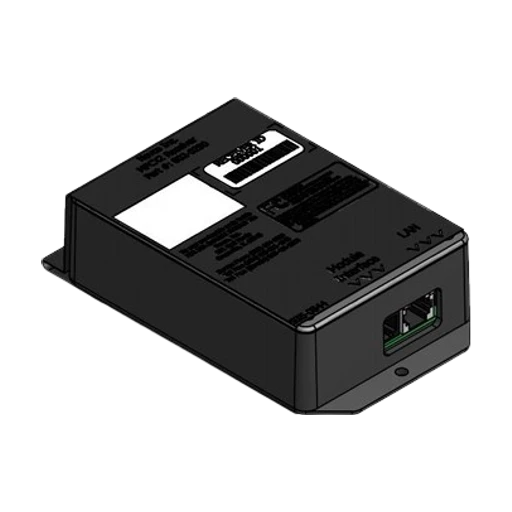

MPCX2 Receiver for use with scoreboards that pre-date x6xx outdoor and x7xx indoor scoreboards. (Boards that have coax input only)

Table of Contents#

• Segment Timer ……………………………………………………………………………………… 2
• Introduction ……………………………………………………………………………………… 2
• Display ………………………………………………………………………………………… 2
• Example Segment Timer Project ……………………………………………………………… 3
• Model Type ………………………………………………………………………………………… 4
• Model Type Compatibility ……………………………………………………………………… 4
• Scoreboard ………………………………………………………………………………… 5
• Segment Timer …………………………………………………………………………… 5
• Changing Model Types ………………………………………………………………………… 5
• Factory Settings …………………………………………………………………………………… 6
• Segment Timer Project ………………………………………………………………………… 6
• Scoreboard Settings …………………………………………………………………………… 6
• Startup Guide ……………………………………………………………………………………… 7
• To Begin ……………………………………………………………………………………… 7
• To Insert a Segment …………………………………………………………………………… 7
• To Edit a Segment …………………………………………………………………………… 8
• To Start the Timer …………………………………………………………………………… 8
• To Stop the Timer …………………………………………………………………………… 8
• Keyboard Functions ……………………………………………………………………………… 9
• Greeting Screen …………………………………………………………………………………… 9
• Main Screen ……………………………………………………………………………………… 10
• 1. Time ON ………………………………………………………………………………… 10
• Segment Selection ……………………………………………………………………… 10
• Segment Editing ……………………………………………………………………… 10
• Setting Segment Function Options …………………………………………………… 11
• Removing a Single Segment ………………………………………………………… 11
• Inserting a Segment ………………………………………………………………… 11
• Horn Function ………………………………………………………………………… 11
• Time Function ………………………………………………………………………… 11
• MPCX2 Power function ……………………………………………………………… 11
• 2. Time Off ………………………………………………………………………………… 12
• Segment Selection ……………………………………………………………………… 12
• Setting Time …………………………………………………………………………… 12
• Removing a Segment ………………………………………………………………… 13
• Clearing Multiple Segments ………………………………………………………… 13
• Inserting a Segment ………………………………………………………………… 13
• Setting Segment Function Options …………………………………………………… 13
• Horn Function ………………………………………………………………………… 14
• Time Function ………………………………………………………………………… 14
• MPCX2 Power function ……………………………………………………………… 14
• 3. After SKIP connection or not connected ……………………………………………… 15
• Segment Selection ……………………………………………………………………… 15
• Setting Time …………………………………………………………………………… 15
• Removing a Segment ………………………………………………………………… 16
• Clearing Multiple Segments ………………………………………………………… 16
• Inserting a Segment ………………………………………………………………… 16
• Setting Segment Function Options …………………………………………………… 16
• Horn Function ………………………………………………………………………… 16
• MPCX2 Power function ……………………………………………………………… 16
• Options Menu …………………………………………………………………………………… 17
• Standard Options …………………………………………………………………………… 17
• Advanced Options …………………………………………………………………………… 19
• Setting Scoreboard Model …………………………………………………………………… 19
• MPCX2 Control / Receiver Setup Procedure ………………………………………………… 20
• Troubleshooting Chart ………………………………………………………………………… 25

Segment Timer#

Introduction#

A segment timer is used for pacing organized practices. Typically, a segment consists of a practice event (playbook time, running drills, breaks, etc) that is run for a set period of time. Once the time has expired, a new segment is entered and the drill changes. The segment timer will count down from the programmed segment time to zero. The Segment timer control has a maximum of 40 segments.

The MPCX2 Segment Timer Control controls the Portable Segment Timer and compatible Nevco scoreboards. The MPCX2 Segment Timer Control can also be used to run segments on a compatible Nevco scoreboard. The segment number displays in the "Home Score" position and the time displays in the main time position.

Display#

• Current Segment — is segment 1
• Total Segments — shown after "of"
• Auto Horn Enabled — shown as "H" on segment 1
• Auto Advance Enabled — shown as "A" on segment 1
• Segment 1 time — shown on second line
• Time Status — shown as "Time: OFF" or "Time: ON"

Example Segment Timer Project#

Model Type#

The Scoreboard settings on the segment timer change the MPCX2 to be compatible to different (compatible) Nevco scoreboard types. There are two settings (Type E and Type F) that are specifically for the segment timer. These two change the display options for the segment timer.

Model Type Compatibility#

Indoor#

Scoreboard Model Type A (+)

For Models 27xx, 26xx, 25xx, SEG-14/PT-14, SEG-18/PT-18, 9510, 200, 230, SCD-T7, SCD-7, SCD-T5, SCD-5, SCD-4, 9515, S60-LED, S60, 4755, 4555-D, 9710, 24xx, 9410, PSC-14, PSC-18

3000 Series#

Scoreboard Model Type B (+)

For models 3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 9505, DGT-5, 9405, 3020, 3400, 3402, 3414, 3415, 3416, 3425, 3434, 3455, and 9515

7000 Series#

Scoreboard Model Type C (+)

For models 7504, 7505, 7516, 7520, 7524, 7525, 7530, 9505, DGT-5, 9405, 7404, 7405, 7416, 7424, 7425, 7430, DGT-2, and 9515

1000 Series#

Scoreboard Model Type D (+)

For Models 1520, 1525, 1515, 9505, 9405, and 9515

Standalone Timer#

Scoreboard Model Type E (+)

For Models SEG-14/PT-14, SEG-18/PT-18, PSC-14, and PSC-18

Standalone Segment only#

Scoreboard Model Type F (+)

For Models SEG-14/PT-14, SEG-18PT-18, PSC-14, and PSC-18

X6XX Series#

Scoreboard Model X6XX (+)

For Models X6XX

Model Type Display Functionality#

Scoreboard#

Indoor (A), 3000 Series (B), 7000 Series (C), 1000 Series (D), and X6XX all display the same on a scoreboard.

• The segment number is recorded in the home score section of the scoreboard.
• Segment time is displayed and counts down in the main time area.
• Auto Horn works the same if the compatible scoreboard has a horn

Segment Timer#

Standalone Timer (E) and Standalone Segment (F) display different data on the segment timer.

Standalone Timer (E)

• Flashes the current segment for the first 5 seconds of the segment
• Displays 2 digits of segment time after flashing.
• If time is above a minute the display will display the minutes in the segment
• If time is below a minute the display will count down the seconds

Standalone Segment (F)

• Displays the current segment
• Display flashes current segment for the final 10 seconds of the current segment

Changing Model Types#

1. Press the Options button until the display reads Enter Code to Change Settings
2. Enter the "Code" with the buttons in the sequence: SEGMENT TIME → + → − → AUTO HORN
3. Continue pressing the Options button until the display reads Scoreboard Model Type A (+)
4. Press the + button to toggle thru the scoreboard models until desired model type is displayed
5. When desired model type is displayed press PREVIOUS SEGMENT, NEXT SEGMENT, SET TIME, TIME OFF, or TIME ON to select model type and save it.

Factory Settings#

Segment Timer Project#

The Segment timer MPC-X is preprogrammed with a full segment timer project from the factory. Following is the project settings:

• Segment Set to Segment 1
• 40 Total Segments (the maximum amount)
• Auto Horn Enabled on all segments
• Auto Advance Enabled on all segments
• All Segment time is 5:00
• Time Status OFF

Scoreboard Settings#

The scoreboard settings preprogrammed into the control are the brightness setting and the scoreboard model type setting.

• Display Brightness is set to bright
• Scoreboard model type is set to type A (Indoor)

Startup Guide#

To Begin#

1. Press ON/OFF

The control will display a greeting while it establishes communications with its receiver(s). (Up to 20 seconds).

Display shows: MPCX2 v01.00 / 2.4 GHz

Then: Scanning

1. Finally, the display will show the Segment (Seg), the total number of segments, the current segment time, and time status.

Display shows: Seg: 1 of 40 HA / 5:00 Time: OFF

To Insert a Segment#

Time must be off to insert a segment.

1. To insert a segment first press OPTIONS — the first option to come up will be to insert a segment.

Display shows: Insert Segment / Press (+)

1. Press the + and a new segment will be placed at the end and will be copied from the previously last segment.

Display shows: Seg: 1 of 2 H / 5:00 Time: OFF

1. After inserting a new segment the time in minutes of the inserted segment is immediately modifiable by pressing the + or − buttons.

Display shows: Seg: 1 of 2 H / 5:00 Time: OFF

1. To modify seconds in this process, press SEGMENT TIME.

Display shows: Seg: 1 of 40 HA / 5:00 Time: OFF

1. Setting a time of 0:00 on a segment will delete the current segment being modified and all segments after it.

Display shows: Seg: 6 of 40 HA / 0:00 Time: OFF

1. To do this using this segment first set the time to 0:00, then press NEXT SEGMENT or PREVIOUS SEGMENT.

Display shows: Seg: 5 of 5 HA / 5:00 Time: OFF

To Edit a Segment#

Time must be off to edit a segment.

1. Press PREVIOUS SEGMENT or NEXT SEGMENT until "Seg: 1" displays or select the segment desired to edit.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF

1. Press SEGMENT TIME — This will allow adjustment for the minute's section of the segment timer.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF (cursor on minutes)

1. Use the + or − keys to enter the desired number of minutes.
2. Press SEGMENT TIME again — This will allow adjustment for the second's section.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF (cursor on seconds)

1. Press the Next Segment key to save your segment and update the segment timer.

To Start the Timer#

Press TIME ON

The control will display: Seg: 1 of 40 HA / 0:31 Time: ON

To Stop the Timer#

Press TIME OFF

The control will display: Seg: 1 of 40 HA / 0:31 Time: OFF

Please consult the following sections of this manual for more details, functions, and features.

Keyboard Functions#

Greeting Screen#

GREETING

When the control is Powered ON, the greeting shows the type of control, the software version, and the frequency it is broadcasting. It will then display scanning for the remaining time until the control establishes communications with its receiver(s). (May take up to 20 seconds)

Accessed by pressing: ON/OFF

Display shows:

Then:

When you are done using the control turn it OFF to conserve batteries by holding down the OFF key for 2 seconds.

Main Screen#

MAIN

The main screen shows the selected Segment, Total Segments, Auto Horn state, Auto Advance state, Time, and Time status.

Main screen options change depending on the state of the control. Therefore this section will be split into three sections.

1. Time ON
2. Time OFF
3. After SKIP connection or not connected.

Accessed by pressing: PREVIOUS SEGMENT, NEXT SEGMENT, SEGMENT TIME, TIME OFF, TIME ON

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF

1. Time ON#

Following are the MPCX2 controls with time set to ON.

Segment Selection#

When selecting a segment when time is ON, the segment timer will flash which segment it is currently on for 5 seconds then continue counting down the segment time.

• NEXT SEGMENT — Cycles segment timer forward to the next segment. Press to save changes to segment IE auto horn, and auto advance.

Display shows: Seg: 2 of 40 HA / 0:31 Time: ON

• PREVIOUS SEGMENT — Cycles segment timer backward to the previous segment. Press to save changes to segment IE auto horn, and auto advance.

Segment Editing#

Segment editing is disabled when time is on. The following functions lead to the "Time Off To Edit" screen.

• SEGMENT TIME — This function is disabled while time is on.

Display shows: Time Off To Edit / Press (+)

Setting Segment Function Options#

Segment function options are:

• Auto Advance – Enables the segment to automatically advance to the next segment when the time is completed. If it is not enabled then the segment will advance to the next segment, but the time will be set to OFF.
• Auto Horn – When a segment completes that has "Auto Horn" enabled the horn will sound.

• AUTO ADVANCE — Adds or removes auto advance to the highlighted segment. If auto advance is off and the segment completes, time will display as OFF until Time On is pressed.

Display shows: Seg: 2 of 40 A / 0:31 Time: ON

• AUTO HORN — Adds auto horn to the highlighted segment.

Display shows: Seg: 2 of 40 H / 0:31 Time: ON

Removing a Single Segment#

• SEGMENT TIME (hold) — Hold to delete current segment. Each segment number will go down by 1 (2 is now 1 etc) and total segments will decrease by one each time this is done.

Display shows: Seg: 1 of 39 HA / 0:20 Time: ON

Inserting a Segment#

1. To insert a segment first press OPTIONS — the first option to come up will be to insert a segment.

Display shows: Insert Segment / Press (+)

1. Press the + and a new segment will be copied from the last segment and added to the segment list in the last segment spot.

Display shows: Seg: 1 of 40 HA / 0:31 Time: ON

Horn Function#

• HORN — Sounds the horn

Time Function#

• TIME OFF — Turns the time off.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF

MPCX2 Power function#

• ON/OFF — Turns the control and segment timer off.

2. Time Off#

Following are the MPCX2 controls with the time set to OFF.

Segment Selection#

• NEXT SEGMENT — Cycles segment timer forward to desired segment. Press to save changes to segment IE time, auto horn, and auto advance.

Display shows: Seg: 2 of 40 HA / 0:31 Time: OFF

• PREVIOUS SEGMENT — Cycles segment timer backward to desired segment. Press to save changes to segment IE time, auto horn, and auto advance.

Setting Time#

Follow these steps to set the time on each segment desired to use.

1. One press of the SEGMENT TIME button will highlight the minutes of the current segment to be edited.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF (cursor on minutes)

1. Additional presses will toggle between editing minutes and seconds of the selected segment.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF (cursor on seconds)

1. Use the + or − keys to change the time settings for minutes or seconds.

Display shows: Seg: 6 of 40 HA / 5:31 Time: OFF

1. Setting a time of 0:00 on a segment will delete the current segment being modified and all segments after it.

Display shows: Seg: 6 of 40 HA / 0:00 Time: OFF

1. To do this using this segment first set the time to 0:00, then press NEXT SEGMENT or PREVIOUS SEGMENT.

Display shows: Seg: 5 of 5 HA / 0:28 Time: OFF

Removing a Segment#

• SEGMENT TIME (hold) — Hold to delete current segment. Each segment number will go down by 1 (2 is now 1 etc) and total segments will decrease by one each time this is done.

Display shows: Seg: 1 of 39 HA / 0:20 Time: OFF

Clearing Multiple Segments#

Clearing multiple segments will delete the current segment selected and all segments after it.

To clear segments go through the setting time process and set the time to 0:00.

If all segments are cleared the MPCX2 will default to:

Display shows: Seg: 1 of 1 HA / 5:00 Time: OFF

Inserting a Segment#

1. To insert a segment first press OPTIONS — the first option to come up will be to insert a segment.

Display shows: Insert Segment / Press (+)

1. Press the + and a new segment will be copied from the last segment and added to the segment list in the last segment spot.

Display shows: Seg: 1 of 2 HA / 5:00 Time: OFF

Setting Segment Function Options#

Segment function options are:

• Auto Advance – Enables the segment to automatically advance to the next segment when the time is completed. If it is not enabled then the segment will advance to the next segment, but the time will be OFF.
• Auto Horn – When a segment completes that has "Auto Horn" enabled the horn will sound.

• AUTO ADVANCE — Adds or removes auto advance to the highlighted segment. If auto advance is off and the segment completes time will display as OFF until Time On is pressed.

Display shows: Seg: 2 of 40 A / 0:31 Time: OFF

• AUTO HORN — Adds auto horn to the highlighted segment.

Display shows: Seg: 2 of 40 H / 0:31 Time: OFF

Horn Function#

• HORN — Sounds the horn

Time Function#

• TIME ON — Turns time on the segment timer.

Display shows: Seg: 1 of 40 HA / 0:31 Time: ON

MPCX2 Power function#

• ON/OFF — Turns the control and segment timer off.

3. After SKIP Connection or Not Connected#

Following are the MPCX2 controls when not linked to a receiver.

Segment Selection#

With no link to a receiver segment selection is functionally to select a segment to modify.

• NEXT SEGMENT — Cycles segment timer forward to desired segment. Press to save changes to segment IE time, auto horn, and auto advance.

Display shows: Seg: 2 of 40 HA / 0:31 Time: OFF

• PREVIOUS SEGMENT — Cycles segment timer backward to desired segment. Press to save changes to segment IE time, auto horn, and auto advance.

Setting Time#

Follow these steps to set the time on each segment desired to use.

1. One press of the SEGMENT TIME button will highlight the minutes of the current segment to be edited.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF (cursor on minutes)

1. Additional presses will toggle between editing minutes and seconds of the selected segment.

Display shows: Seg: 1 of 40 HA / 0:31 Time: OFF (cursor on seconds)

1. Use the + or − keys to change the time settings for minutes or seconds.

Display shows: Seg: 6 of 40 HA / 5:31 Time: OFF

1. Setting a time of 0:00 on a segment will delete the current segment being modified and all segments after it.

Display shows: Seg: 6 of 40 HA / 0:00 Time: OFF

1. To do this using this segment first set the time to 0:00, then press NEXT SEGMENT or PREVIOUS SEGMENT.

Display shows: Seg: 5 of 5 HA / 0:28 Time: OFF

Removing a Segment#

• SEGMENT TIME (hold) — Hold to delete current segment. Each segment number will go down by 1 (2 is now 1 etc) and total segments will decrease by one each time this is done.

Display shows: Seg: 1 of 39 HA / 0:20 Time: OFF

Clearing Multiple Segments#

Clearing multiple segments will delete the current segment selected and all segments after it.

To clear segments go through the setting time process and set the time to 0:00.

If all segments are cleared the MPCX2 will default to:

Display shows: Seg: 1 of 1 HA / 5:00 Time: OFF

Inserting a Segment#

1. To insert a segment first press OPTIONS — the first option to come up will be to insert a segment.

Display shows: Insert Segment / Press (+)

1. Press the + and a new segment will be copied from the last segment and added to the segment list in the last segment spot.

Display shows: Seg: 1 of 2 HA / 5:00 Time: OFF

Setting Segment Function Options#

Segment function options are:

• Auto Advance – Enables the segment to automatically advance to the next segment when the time is completed. If it is not enabled then the segment will advance to the next segment, but the time will be OFF.
• Auto Horn – When a segment completes that has "Auto Horn" enabled the horn will sound.

• AUTO ADVANCE — Adds or removes auto advance to the highlighted segment. If auto advance is off and the segment completes time will display as OFF until Time On is pressed.

Display shows: Seg: 2 of 40 A / 0:31 Time: OFF

• AUTO HORN — Adds auto horn to the highlighted segment.

Display shows: Seg: 2 of 40 H / 0:31 Time: OFF

Horn Function#

• HORN — Sounds the horn

MPCX2 Power function#

• ON/OFF — Turns the control and segment timer off.

Options Menu#

Several option settings are available to fine tune the scoreboard system to your needs. These settings are saved in the control. They are remembered even if the control is turned OFF or the batteries removed. When a control turns ON the scoreboard, these settings are sent to the scoreboard and are used to define how it operates. This allows each coach or group to have their own control with its unique option choices, thus eliminating the need to set up the options every time the scoreboard is used. For example, Brightness (Baseball – day time) (Soccer – night time).

It is also possible to use more than one control to operate the scoreboard. For instance, the Time can be controlled by one person while someone else operates the rest of the scoreboard with another control.

Standard Options#

The options key can be used to access the following features. Each press of the options key moves you to the next option screen.

Clear Scoreboard — Press (+)

Allows you to clear the scoreboard data.

Edit ETN — Press (+)

Allows you to edit the Electronic Team Name for both Home and Guest.

Guests ETN — Press (+) / Home ETN — Press (+)

After pressing the "+" key to get into the ETN menu, press the "Options" button to switch between Home and Guest ETN's.

Home ETN — (editing screen)

Use the "+" to go increment the alphabet and the "−" key to decrement the alphabet. Use the "Options" button to advance the cursor.

Time Up/Down — (+)Up (−)Down

Allows you to set the direction the timer will count.

Brightness — (+)HIGH (−)LOW

Allows you to select the Brightness Level of the scoreboard. (High or Low)

Auto Horn — (+)On (−)Off

Allows you to enable or disable the automatic horn. (Sounds for about 4 seconds when time has expired).

Set Time of Day — Press (+)

Turns the control OFF and blanks all scoreboard functions except Time. Uses the displayed time as the set time if it is a valid Time Of Day. Otherwise blanks the entire scoreboard.

Battery Level — L>>>>>>>>>>>>H

Reports the condition of the batteries in the control.

Signal Strength — L>>>>>>>>>>>>H

Allows you to check signal strength when connected to a receiver. Used as an indication of reliability of communications. Affected by distance, battery condition, obstructions and signal interference.

Advanced Options#

Enter Code to Change Settings

This menu option allows you to access settings that affect how the control operates. Generally, these settings need not be changed and should only be changed by an experienced operator or under direction from the Nevco Service Department.

Press the following key sequence:

a. Segment timer — (Segment time) (+) (−) (Auto Horn)

b. Shot Clock/Pitch Time/Delay Of Game — (Reset 1) (+) (−) (Reset 2)

to gain access to the following additional menu items.

Or

Press the OPTIONS key to return to the main screen.

Link Menu — Press (+)

This menu option allows the user to add a receiver ID, delete a receiver ID, and to view the status of which ID's are programmed and enabled or disabled. Press the + button to scroll through the different link menus.

Please refer to sections "Mating a New Control to Receiver(s)" and "Adding, Deleting or Enabling/Disabling Receiver ID's" for detailed instructions.

The Network Analyzer allows the user to see the number of receivers connected and see the integrity of the network in percentage.

Setting Scoreboard Model#

The next press of the options key will display one of the following screens. It indicates which of the scoreboard model series the control is currently configured to operate. Use the "+" key to toggle thru the scoreboard models. Press the OPTIONS key again to exit the options routine. The last scoreboard series displayed will become the new control configuration.

Display shows: Scoreboard Model

Refer to the Scoreboard Model table found below for the appropriate scoreboard model to be used with your scoreboard.

MPCX2 Control / Receiver Setup Procedure#

Before using the MPCX2 control it must be mated to the receiver(s) and set for the model of scoreboard that you wish to operate.

Mating a New Control to Receiver(s)#

1. Record the receiver(s) ID's located on the receiver box before installation for future reference. Multiple receivers can be used with multiple controllers all on the same network. (The serial number is in the battery door on a segment timer)

1. Install the receiver(s) into the scoreboard and power up the receiver(s) that are to be used.

a. Standard Installation – Uses the RJ12 output of the receiver.

b. Rain Type Box Installation – Uses the coax output of the receiver and a 9VDC power supply.

!Standard Type receiver showing MPCX2 RX Barcode Receiver ID location

!Coax Input Type receiver showing MPCX2 RX Barcode Receiver ID location

1. Wait approximately 15 seconds after the receiver has been turned on before turning on the MPCX2 controller in order to allow enough time for the receiver to be initialized.
2. Insert the batteries included with the MPCX2 control or turn the control ON by pressing ON/OFF.

The display will read: Enter Rec ID: / 000000

1. Enter in the receiver ID's located on the receiver box using the controller keypad buttons. Press Options (NEXT) to move the cursor and + or − to increment or decrement each digit. When done press the (BACK) button in the lower left corner.
2. The screen will then prompt with: Reset Now? / (+)NOW (−)LATER
3. Pressing + will reset the controller. Pressing − will allow additional receiver ID's to be entered into the controller and will display the message: Add Another? / (+)YES (−)NO
4. If additional receivers are to be added then select + and repeat steps 5 through 6. If additional receivers do not need to be added then select − and the controller will be reset.

Setting the Control for Your Model of Scoreboard#

This procedure is not necessary if you have one of the following models:

1500, 1510, 1530, 1535, 1550, 1600, 1610, 1630, 1635, 1650, 1000, 1010, 1030, 1035, 3500, 3502, 3504, 3514, 3515, 3516, 3520, 3525, 3534, 3550, 1632, 9605, 9505, 9715, 9515, 3400, 3402, 3404, 3414, 3415, 3416, 3425, 3434, 9405, 9550, SCD-5, SCD-7, S60-LED, S60, SCD-4.

And for any sport except Soccer: 2700, 2710, 2715, 2740, 2750, 2760, 2770, 2775, 2600, 2610, 2615, 2640, 2650, 2670, 2675, 2500-D, 2500, 2500-A4-D, 2500-A4, 2540, 2540-A4, 2550-D, 2550, 2560, 200, 230, 9510, 9715, 9515, 9710, 2400, 2400-A4, 2440, 2440-A4, 2450, 2460, 9410

1. Turn the control on by pressing ON/OFF
2. Press the Options button until the display reads Enter Code to Change Settings
3. Enter the "Code" with the buttons in the sequence:

a. Segment timer — (Segment time) (+) (−) (Auto Horn)

b. Shot Clock/Pitch Time/Delay Of Game — (Reset 1) (+) (−) (Reset 2)

1. Continue pressing the Options button until the display reads Scoreboard Model (+)
2. Press the + key to select the scoreboard model shown in the table below.
3. Press the Options key to exit the menu.

Multiple Receivers and Controllers#

Both multiple controllers and receivers can be on the same network.

Multiple Controllers#

For example, one person with a controller can control Game Time and another person with a separate controller can control Game Score of the same game on the same scoreboard. Multiple controllers can be used for any combination of game data.

If a second controller is powered on after the first powered on controller has been initialized, then the second controller will be configured with the same Scoreboard Model described in the "Setting the Control for Your Model of Scoreboard" section.

Multiple Receivers#

Multiple receivers can be used on the same network. One example could be separate scoreboards for the same game or in the case of basketball one receiver controls the scoreboard while other receiver(s) control the shot clock(s).

Scoreboard Model Selection Table#

Troubleshooting Chart#

If the problem persists please contact the Nevco Service Department.

800-851-4040 or https://support.nevco.com/contact/

LED Status#

The receiver has a red status LED next to the RJ12 and Ethernet jack. It can be used to diagnose the status of the MPCX2 receiver.

Receiver Identification on Powerup#

On powerup the receiver connected to the OCM will identify itself by flashing from the most significant 2 digit numbers to the least significant 2 digit numbers. For example, a receiver with ID 123456 will flash 12, 34, and then 56 on power up. This is used to distinguish which X2 receiver is connected to which OCM's without having to open up the scoreboard.

Features#

MPCX2 Control#

• Small and light weight (fits in or clips to pocket)
• Electronic Team Name and Caption Support
• Tactile confirmation of key pressed
• High visibility transflective display
• Convenient wireless operation
• Built in wireless signal strength meter
• Power conservation circuitry
• Built in battery meter
• Long battery life
• Uses inexpensive, readily available AA batteries
• Sealed keyboard
• No slip grip
• Ergonomic single hand operation
• Internal antenna
• Mate multiple controls to same scoreboard
• Operate multiple scoreboards
• Retrofits to existing wired installations

Specifications#
