Model Code 354 — Seconds Timer
LED models:
- DGT-5
Incandescent models:
- 3020
- DGT-2
- Start Up Procedure
- Start Where Turned Off Last?
- Go To A Bookmark?
- Enter Your Model Code
- Quick Start Guide

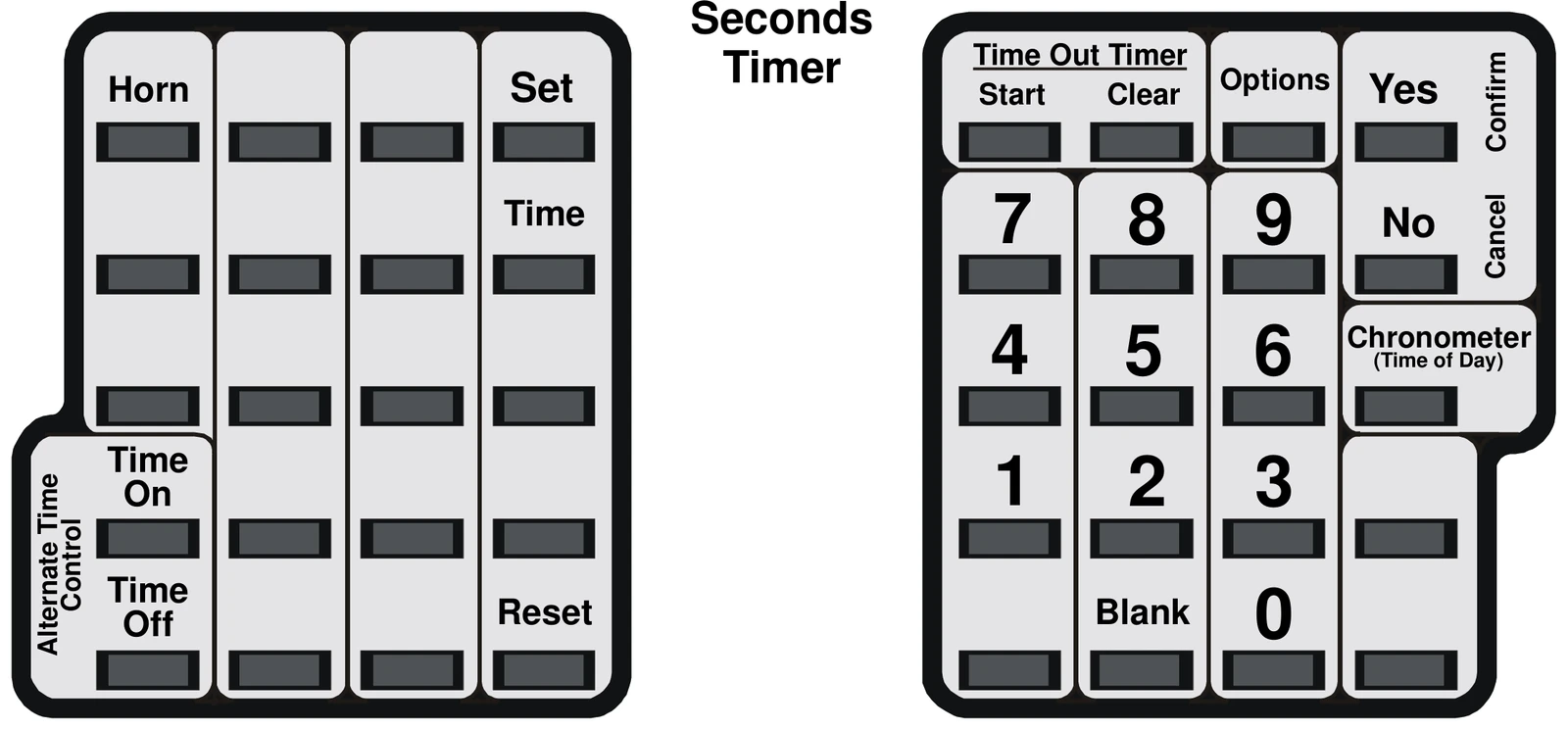

- Keyboard Functions
- Options
- Set Options Chart
- The Set Options Menu
- Troubleshooting Chart
- Glossary
- Appendix (Chronometer)
- Example
- Set The Chronometer
When you turn the control on, the traveling display prompts you to "START WHERE TURNED OFF LAST?", "GO TO A BOOKMARK?", or "ENTER YOUR MODEL CODE". Answer YES, NO, or enter the 3 character model code on the overlay.
If a power failure happens during a game, press YES to resume from the point the power failed. The control can detect when power is failing and save the current data. (If the time was running when the power failed it will continue running as soon as power is restored).
A bookmark makes a quick efficient way to start a new game or practice drill. If a bookmark has been saved for this activity, answer YES to the bookmark question. The control will prompt for the "BOOKMARK #". Press the number of the bookmark you want to use (1 to 5). The control will load the configuration and data it had in it at the time the bookmark was saved.
To start a new game or procedure, be sure the proper overlay is installed on top of the control. Enter the 3 character model code located near the top center of the overlay.
- The type of scoreboard [ SECONDS TIMER ] will be displayed briefly.
- The control asks for the default reset time [ TIME SS ] — enter the seconds (0 to 69) and press YES to confirm.
- The control will ask "DO YOU WANT TO SWITCH TO BRIGHT?" Press NO to use the default (dim) mode, or YES to switch the scoreboard to the bright mode (for daytime use).
- The time you set, the time switch condition and direction [ 25 OFF DN ] will be displayed, and the scoreboard(s) will turn on.
- The type of scoreboard [ SECONDS TIMER ] will be displayed briefly.
- The control will ask "DO YOU WANT TO OPERATE WIRELESS?"
If you answer NO:
- The control asks for the default reset time [ TIME SS ] — enter the seconds (0 to 69) and press YES to confirm.
- The control will ask "DO YOU WANT TO SWITCH TO BRIGHT?" Press NO to use the default (dim) mode, or YES to switch the scoreboard to the bright mode (for daytime use).
- The time you set, the time switch condition, and direction [ 25 OFF DN ] will be displayed, and the scoreboard(s) will turn on.
If you answer YES:
- The control will prompt [ SELECT A GROUP ] then display the first group that is set up in the control. To see the next group name, press NO. When the desired group name is being displayed press YES.
- The control asks for the default reset time [ TIME SS ] — enter the seconds (0 to 69) and press YES to confirm.
- The control will ask "DO YOU WANT TO SWITCH TO BRIGHT?" Press NO to use the default (dim) mode, or YES to switch the scoreboard to the bright mode (for daytime use).
- The time you set, the time switch condition and direction [ 25 OFF DN ] will be displayed, and the scoreboard(s) will turn on.
With the scoreboard on and the control showing the time, you are ready for the game to begin.
[ 25 OFF DN ]
Press Time On
Press Time Off
Press Reset — The control will show [ 25 OFF DN ]
- Press Set then Time — The control will show [ TIME SS ]
- Press 1 then 2 — The control will show [ Y/N 12 ]
- Press Yes — The control will show [ 12 OFF DN ]
Please consult the following sections of this manual for more details, functions, and features.
Use the YES key to respond to questions and to confirm data input.
Use the NO key to respond to questions and to cancel an operation.
Use the SET key ahead of a function key to initiate the direct entry mode or to change the settings in OPTIONS, CHRONOMETER, and TIME OUT TIMER, or to set the TIME, and other features. (For more details see the description for the function.)
Press the HORN key to sound the scoreboard horn. Release the key to stop the horn.
The horn automatically sounds when the timer counts down to zero. (Auto Horn)
Press SET then HORN to disable or enable the AUTO HORN.
The control will prompt [ AUTO HORN ? (Y/N) ]. The default setting is auto horn on.
Press the OPTIONS key to see a scrolling report of the current system settings.
Press SET then OPTIONS to change the system configuration.
There are 10 TIME OUT Timers available. Timer 0 is preset to 30 seconds with a warning horn at 10 seconds.
Press TIME OUT TIMER START.
The display will prompt: [ TIMER # (0-9)? ]
When you enter the desired number, the preset Time Out Time is displayed on the control, and on the scoreboard if set to do so, and begins counting down. When only the warning time remains, a warning horn sounds briefly (if set up). When the timer reaches zero, the horn sounds briefly again and the time begins counting up on the control. Any time the Main Time is turned on, the Main Time is restored to the display(s) and the Time Out Timer is canceled.
Press SET, then TIME OUT TIMER START to set up a TIME OUT TIMER.
The display will prompt [ TIMER # (0-9)? ] Enter the number of the timer to set up or overwrite. The control will prompt [ SET MM:SS ] Enter the total length for the time out. The control will ask "DO YOU WANT TO USE TIME OUT WARNING HORN?" If you answer YES the control will prompt [ SET MM:SS ] Enter the warning time.
Press TIME OUT TIMER CLEAR to cancel the currently active portion of the Time Out Time. (If the warning horn has not yet sounded, it will sound and the timer will continue from the warning time).
Pressing the CHRONOMETER key will cause the Time of Day to be displayed on the control.
Pressing SET, then CHRONOMETER will enter the set up mode. The questions asked will depend on your system and its current configuration.
Questions that the control may ask include:
DO YOU HAVE AN AUXILIARY TIME DISPLAY CONNECTED?
(NOTE: Auxiliary Time Display models include: 9410, 9510, 9405 and 9505).
DO YOU WANT TO DISPLAY CHRONOMETER TIME ON AUXILIARY TIME DISPLAY?
SET CHRONOMETER?
[ SET HH:MM:SS ]
TURN CONTROL OFF BUT LEAVE CHRONOMETER TIME DISPLAYED? (Allows the control to be turned off, disconnected, and stored away in a safe location, while the scoreboard or auxiliary time display, or both, continues to display a running "time of day" clock.)
DISPLAY CHRONOMETER TIME ON AUXILIARY TIME DISPLAY? (Auxiliary time display only)
Follow the prompts.
Press TIME ON to start the main time.
Press TIME OFF to stop the main time.
Press TIME to recall the main time to the display. If other timers are in use, successive key presses will toggle among the main time and the other timers.
Press SET then press TIME to enter the Time setting mode. The control will prompt:
[ TIME SS ]
Enter the Seconds as needed. Press YES to accept the time entered.
Press RESET to set the time to the pre-set value and return to the main time display.
Many options are available for modifying the way the scoreboard system works. The questions the control will ask and their order depends on the current system and settings. Pressing the OPTIONS key starts a scrolling report of the current system settings. This report will continue to repeat until a key is pressed. To change a setting, press SET OPTIONS and use the YES (confirm) and NO (cancel) keys to work your way through a series of questions that is based on your system and available options. When all questions have been asked, the control returns to normal operating mode.
| Question | Y | N |
|---|---|---|
| Do You Have An Auxiliary Time Display Connected? (this question may not always be asked)* | → (next questions) | Next Available Question |
| Switch to (Bright or Dim)? | Changes brightness level of Scoreboard | Next Available Question |
| Use Aux Timer? | Aux Timer To Count Down? → Y: Start and Stop with Hand Held Switch? → Y: SET HH:MM:SS → Display Aux Timer on Auxiliary Time Display? ; N: SET MM:SS → Display Aux Timer on Auxiliary Time Display? ; N: Next Available Question | Next Available Question |
| Display Chronometer on Auxiliary Time Display? ** | → | Next Available Question |
| Change Direction of Main Clock? | Do You Want Clock to Stop at Specified Time? → Y: SET MM:SS; N: Next Available Question | Next Available Question |
| Set a Bookmark? | Bookmark #? | Normal Operation Mode |
The control will need to know if an auxiliary time display is connected as part of your system. The Auxiliary Time Display is used to display time (Main Time, Auxiliary Time or Time of Day). Auxiliary Time Display models include: 9410, 9510, 9405 and 9505.
OR
Answering YES will toggle the brightness level of the scoreboard.
OR
OR
The control has a built in auxiliary timer that can be used for many purposes. It can be configured to count up or down and it can run continuously or only when the main time is running. It can be displayed on the control by pressing the time key twice in succession. It can also be configured to display on an auxiliary time display if one is part of your system. Some uses for the auxiliary timer include timing field or facility usage, or it can be used to determining how far into a game a certain event happened.
- Answering YES will setup the timer to count down (99 hours: 59 minutes: 59 seconds maximum).
- Answering NO will setup the timer to count up (59 minutes: 59 seconds maximum).
- Answering YES will setup the timer to start and stop with the action of the same switch that controls the main time.
- Answering NO will setup the timer to run continuously regardless of the switch position.
- Answering YES will cause the aux time to be displayed on the auxiliary time display.
- Answering NO will cause the auxiliary time display to continue displaying the main time or the time of day.
- Answering YES will cause the time of day to be displayed on the auxiliary time display.
- Answering NO will allow the auxiliary time display to continue without change.
Toggles the direction the main clock runs.
A stop time may be set when the timer direction is changed to up count. When the clock reaches the stop time, the clock stops and the auto horn will sound if enabled.
If you answer YES, you are prompted for the stop time. Follow the prompts.
A bookmark is like a picture or snapshot of all the data and configuration settings in the control. When you go to a bookmark, the control is restored to where it was at the time the bookmark was saved.
Bookmarks can be edited by going to the bookmark, making the changes needed, then saving the bookmark again using the same bookmark number or a different one.
Five separate bookmarks are available and each can be reused as desired.
If you try to save to a used bookmark, you will be warned and given a chance to abort the procedure.
| Problem | Cause | Solution |
|---|---|---|
| Cannot Save a Bookmark | Time is running | Turn time off before saving a bookmark |
| Timer counts in wrong direction | Timer direction is set wrong | Use SET OPTIONS to change timer direction |
| Aux time is displayed on the auxiliary time display, but it is not counting | Hours and minutes are being displayed. The display will change only once each minute | Minutes and seconds will be displayed during the last hour of remaining time |
If the problem persists please contact the Nevco Service Department.
800-851-4040
ALTERNATE TIME CONTROL SWITCHES (keys): Located on the keypad, these 2 keys, TIME ON and TIME OFF, may be used instead of the Hand Held Time Control Switch.
AUTO HORN: Sounds for a minimum of 2 seconds when the main time has expired or reached the stop time. (Can be disabled from the control)
AUX TIMER: An auxiliary timer, separate from the main timer, that can be configured to count up or down and to start and stop with the time control switch or run continuously. It can be viewed on the control (press the time key twice) or on an AUXILIARY TIME DISPLAY. Some uses for the aux timer include timing field or facility usage, or determining how far into a game a certain event happened.
AUXILIARY TIME DISPLAY: Consisting only of a timer, it can display the main time, the AUX TIME or the Chronometer (Time of Day Clock). Auxiliary Time Display models include: 9410, 9510, 9405 and 9505.
BATTERY: Battery powered memory saves the settings and data in the control in case of power failure. It also maintains the accuracy of the CHRONOMETER when the control is unplugged.
BEEPER: Confirms each key press and alerts operator when a special event such as time expired or an Entry Error has occurred.
BOOKMARK: Saves the current control settings and data so it can be easily recalled later. (5 Bookmarks are available)
BRIGHTNESS LEVEL: The scoreboard can be set to bright or dim for best viewing. Indoor scoreboards default to bright; outdoor scoreboards default to dim.
CHRONOMETER: Time of Day Clock. Once the correct time has been set, the accuracy of the Chronometer is maintained even while the control power is unplugged. During normal operation, the Chronometer can be displayed on the control by pressing a single key. This key can be armed so that when pressed, the Time of Day is also displayed on the scoreboard.
DISPLAY: A 16 character display on the control prompts the operator for input and can monitor the scoreboard data.
ENTRY ERROR: A visual and audible warning that an invalid action was attempted. Its normal duration is 2 seconds however you may interrupt it and continue immediately.
HAND HELD TIME CONTROL SWITCH: A hand held switch with a coiled cord that plugs into either side of the control. When connected, the alternate time control switches (keys) are disabled. (Makes it easier for another person to control the main time or sound the horn).
INTERVAL HORN: A horn that sounds repeatedly at preset intervals throughout the game. Its primary use is to signal when little league hockey teams should rotate to the court. The Interval Horn has been replaced by a more versatile SEGMENT TIMER. (See Segment Timer)
MODEL CODE: A 3 character code found on the OVERLAY that when entered into the control, sets up the control for a particular scoreboard model and sport or special function.
OPTIONS: Settings that determine how the scoreboard system operates.
OVERLAY: A flat plastic panel that fits over and around the keys on the control. Tabs at the top and bottom hold it in place. Each overlay provides the proper labeling for each key and a three character Model Code. A brief set of operating instructions is printed on the back of each overlay; you may make copies if you desire. When you want to change to a different sport, install the correct overlay and enter the new Model Code.
SEGMENT TIMER: Sometimes called Practice Timer, it allows a list of time segments to be programmed into the control. The list can then be used for a practice routine or drill. When started, the first segment on the list is loaded into the main timer and starts counting down. When zero is reached, the horn sounds and the next segment is loaded and begins counting down with no intervention needed.
SUB HORN: When armed, waits until the main time has been stopped, then sounds automatically to alert the officials that a player is waiting to be substituted into the game.
TENTH SECOND SHIFT TIMER: Automatically shifts from displaying minutes and seconds to seconds and tenths of seconds during the last minute of count down time. (May be disabled if desired)
TIME OUT TIMER: Programmable for different time out lengths and with optional warning horn and an option to display the Time Out time remaining on the scoreboard. (Ten different time out timers are available. Timer 0 is preset to 30 seconds with a warning horn at 10 seconds and is not displayed on scoreboard.)
(Time of Day)
A CHRONOMETER (Time of Day Clock) is built into the control. Once set, it will maintain its accuracy even while the control is turned off or disconnected from power. During normal operation the Time of Day can be recalled to the display on the control by pressing a single key, the Chronometer key. The Chronometer key can be enabled so that when pressed, the Time of Day will also be displayed on the scoreboard(s).
Pressing Set, then Chronometer will initiate the set up mode. While in this mode, you can:
- Specify whether or not the Time of Day will be displayed on the Auxiliary Time Display, if one is connected.
- Enable or disable the Chronometer key so that pressing it will display the chronometer on the scoreboard. (the default is to display the Time of Day on the control only)
- Set the Time of Day Clock.
- Allow the control to be turned off, disconnected, and stored away in a safe location, while the scoreboard or auxiliary time display, or both, continues to display a running "time of day" clock.
Questions that the control may ask include:
(NOTE: Auxiliary Time Display models include: 9410, 9510, 9405 and 9505).
[ KEY ENABLED ]
or
[ KEY DISABLED ]
[ SET HH:MM:SS ]
(Allows the control to be turned off, disconnected, and stored away in a safe location, while the scoreboard or auxiliary time display, or both, continues to display a running "time of day" clock.)
(Scoreboard(s) and auxiliary time display(s))
Display will go blank. Turn control off.
(Auxiliary time display only)
Display will go blank. Turn control off.
A. Set the Chronometer to 12:00:00
- Press SET — then CHRONOMETER.
- The control will ask — DO YOU HAVE AN AUXILIARY TIME DISPLAY CONNECTED? — (Answer this question appropriately.)
- The control will ask — DO YOU WANT TO DISPLAY CHRONOMETER TIME ON AUXILIARY TIME DISPLAY? — (Press No).
- The control will ask — ENABLE CHRONOMETER KEY TO PUT CHRONOMETER TIME ON SCOREBOARD? — (Press No).
- The control will ask — SET CHRONOMETER? — (Press Yes).
[ SET HH:MM:SS ] — (Enter the hours, minutes, and seconds).
[ Y/N 12:00:00 ] — (Press Yes).
